PDF - Sign

Overview

The 'PDF - Sign' action applies a digital signature to the PDF document provided. The action provides two signing options:

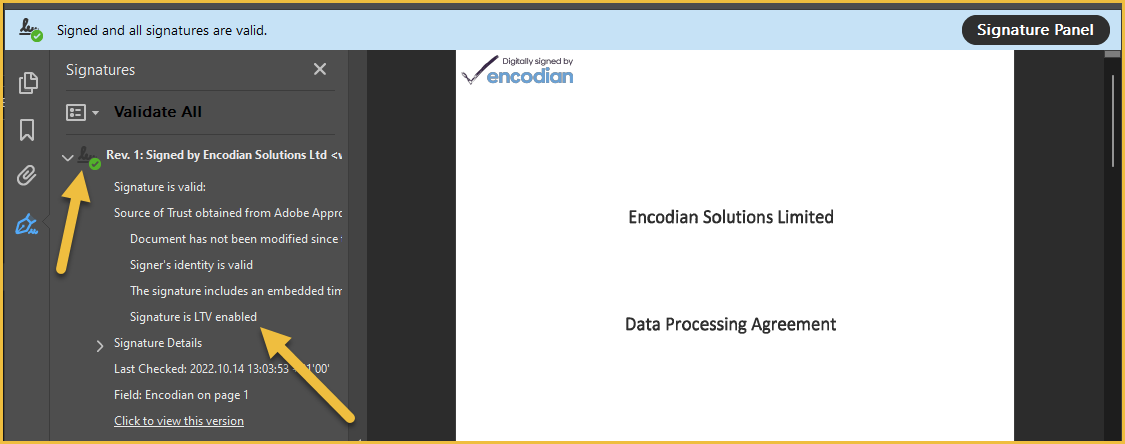

The 'Standard' option uses Encodian's 'Adobe Approved Trust List' certificate, thus a signed document will appear as an approved signature with long-term-validation enabled (the signature image is optional).

The 'Custom' option allows you to provide a custom certificate in PFX format which is used to sign the document. The validity of the signature will depend on the certificate provided to sign the document.

Example Flows

Please refer to the following example solutions:

• Digitally Sign a PDF Document with Power Automate

Power Automate Templates

• Submit a SharePoint document for approval and create a Signed PDF document

Subscription Availability

The 'PDF - Sign' flow action is available in all Power Automate regions and Encodian subscription plans, except the 'Dedicated' plan.

Credit Count

This action consumes 1 credit per operation.

Note, different Encodian actions can consume different number credits. Please always check the action specific documentation and read What is an Encodian Action for a full description of how credits are consumed.

Parameters

The default 'PDF - Sign' flow action parameters are detailed below:

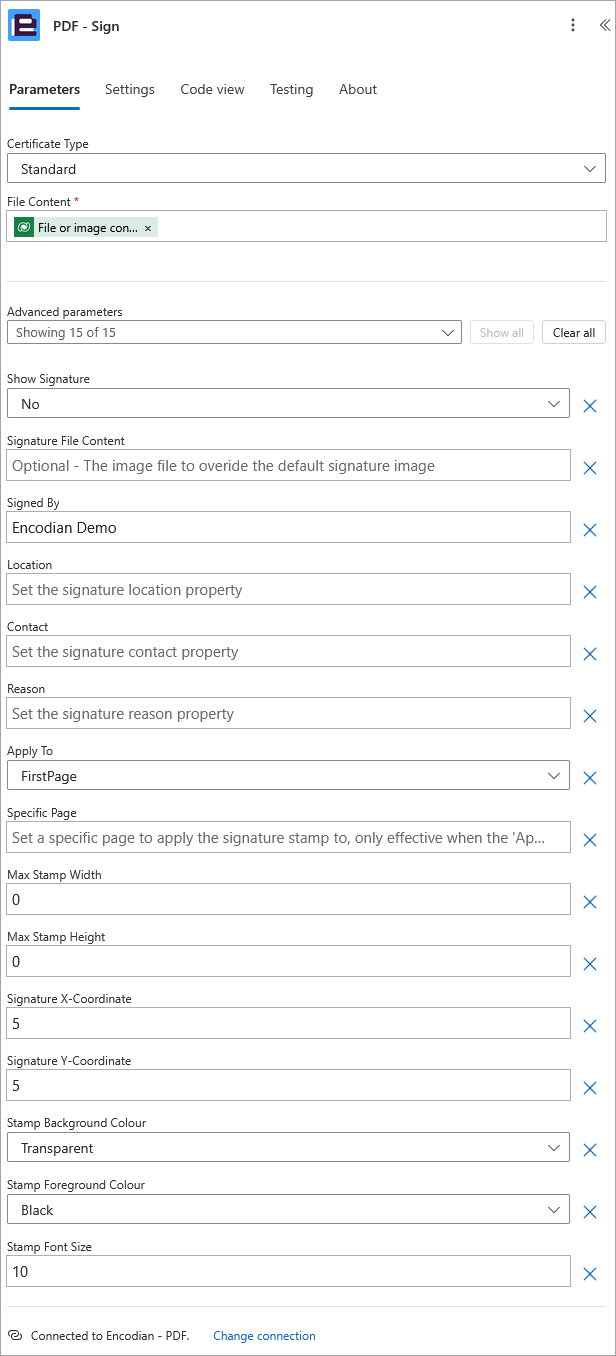

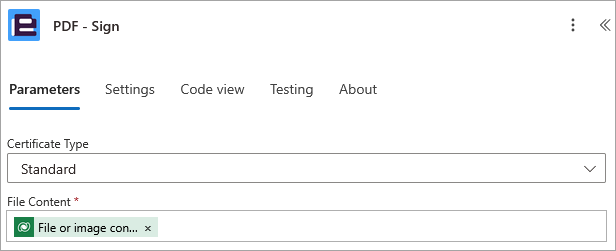

Certificate Type: Standard

• File Content: The file content of the source PDF file

Advanced Parameters

• Show Signature: Set whether the signature stamp should be visible
• Signature File Content: Optional - The image file to override the default signature image
• Apply To: Set where to apply the signature stamp
• Location: Set the signature location property
• Contact: Set the signature contact property
• Reason: Set the signature reason property
• Apply To: Set where to apply the signature stamp
• Specific Page: Set a specific page to apply the signature stamp to, only effective when the 'Apply To' value is set to 'Specific'
• Signature X-Coordinate: The x-coordinate of the of the signature, 0 is the left of the page
• Signature Y-Coordinate: The y-coordinate of the of the signature, 0 is the top of the page

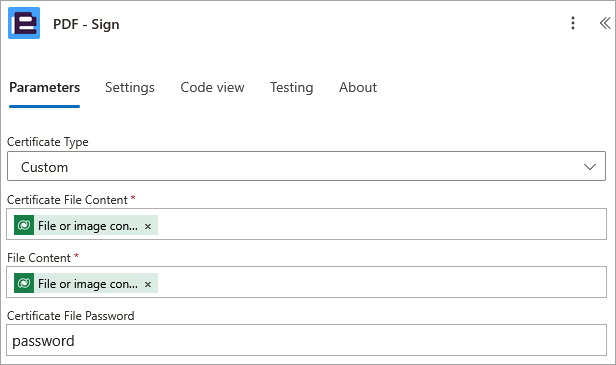

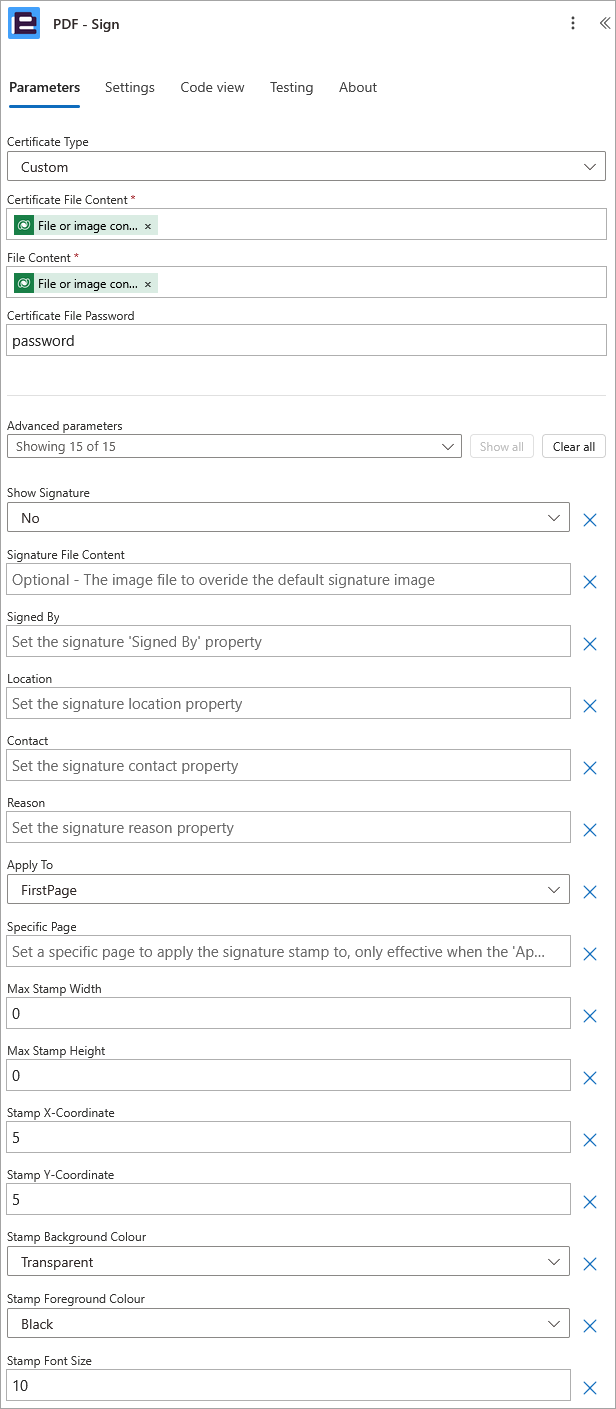

Certificate Type: Custom

• Certificate File Content: The file content of the certificate PFX file
• Certificate Password: The password for the certificate PFX file provided
• File Content: The file content of the source PDF file

Advanced Parameters

• Show Signature: Set whether the signature stamp should be visible
• Location: Set the signature location property
• Contact: Set the signature contact property
• Reason: Set the signature reason property
• Apply To: Set where to apply the signature stamp
• Specific Page: Set a specific page to apply the signature stamp to, only effective when the 'Apply To' value is set to 'Specific'
• Stamp Width: The width of the signature stamp
• Stamp Height: The height of the signature stamp
• Stamp X-Coordinate: The x-coordinate of the upper-left corner of the signature stamp
• Stamp Y-Coordinate: The y-coordinate of the upper-left corner of the signature stamp
• Stamp Background Colour: The background colour to be used for the signature stamp
• Stamp Foreground Colour: The foreground colour to be used for the signature stamp
• Stamp Font Size: The size of the font to be used for the signature stamp

Return Parameters

The 'PDF - Sign' flow action returns the following data.

Action Specific Return Values

• File Content - The signed PDF document (Base64)

Standard Return Values

• OperationId - The unique ID assigned to this operation.
• HttpStatusCode - The HTTP Status code for the response.
• HttpStatusMessage - The HTTP Status message for the response.
• Errors - An array of error messages should an error occur.
• Operation Status - Indicates whether the operation has been completed, has been queued or has failed.
