Conditional Expressions

The Encodian population engine supports conditional expressions which enable you to add logic to your document to evaluate defined criterion to ascertain whether certain tokens (and related data) should be inserted into the document.

This article covers the following topics and examples:

Conditional Expression Syntax Overview

Example #1 - Basic

Example #2 - Advanced

Example #3 - Tables

Conditional Expression Operators

Conditional Expression Syntax Overview

Conditional expressions conform to common logical syntactical constructs, see below:

<<if [conditional_expression1]>>
Show this data
<<elseif [conditional_expression2]>>
Show This data
<<else>>
This this data
<</if>>

Example #1 - Basic

Example Document: Encodian - Template Syntax - Conditions Basic.docx

Example JSON Data:

{
"companyName": "Encodian",
"invoicePaid": true,
"invoiceOverdue": false,
"invoiceDue": "2021-06-01",
"invoiceValue": 10000
}

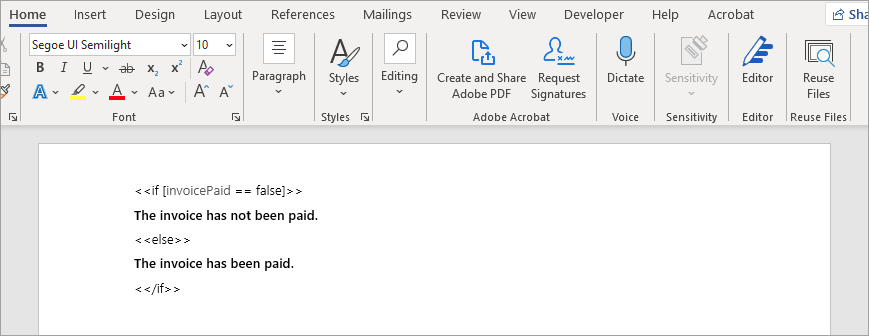

Configure the document with required conditional expressions and content:

<<if [invoicePaid == false]>>
The invoice has not been paid.
<<else>>
The invoice has been paid.
<</if>>

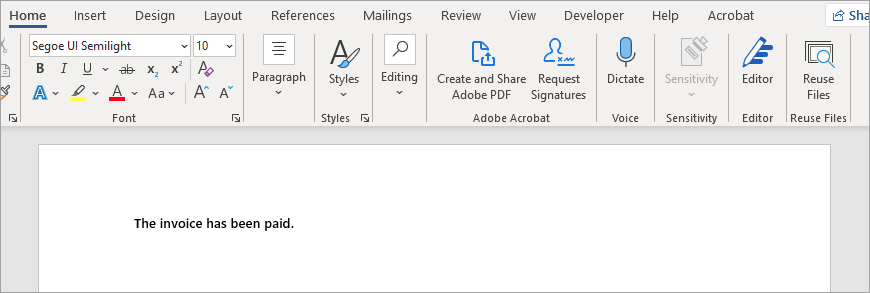

This generates the following output:


Example #2 - Advanced

Example Document: Encodian - Template Syntax - Conditions Advanced.docx

Example JSON Data:

{
"companyName": "Encodian",
"invoicePaid": false,
"invoiceDue": "2021-06-01",
"invoiceValue": 10000,
"generatedOn": "2021-05-19"
}

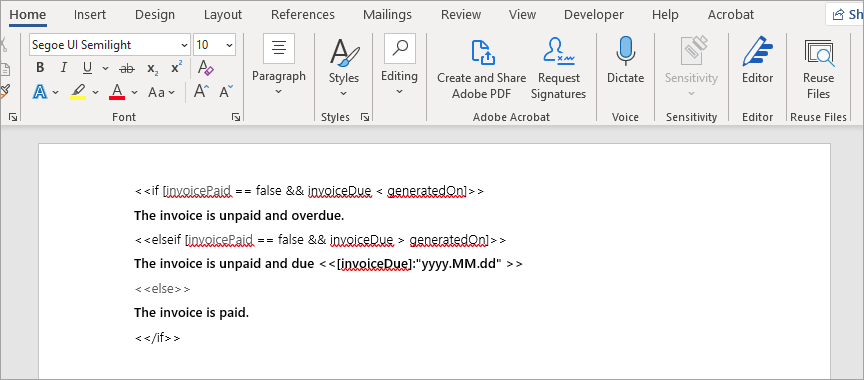

Configure the document with required conditional expressions and content:

<<if [invoicePaid == false && invoiceDue < generatedOn]>>
The invoice is unpaid and overdue.
<<elseif [invoicePaid == false && invoiceDue > generatedOn]>>
The invoice is unpaid and due <<[invoiceDue]:"yyyy.MM.dd" >>
<<else>>
The invoice is paid.
<</if>>

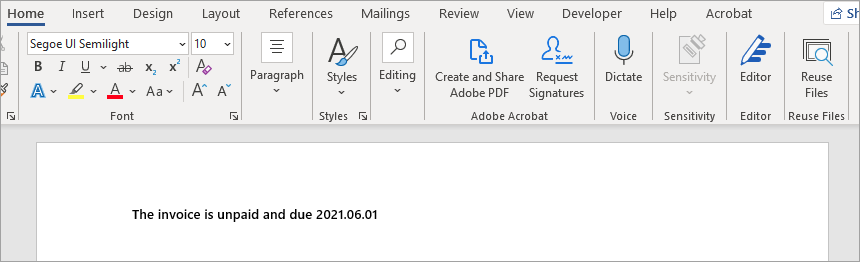

This generates the following output:


Example #3 - Tables

Example Document: Encodian - Template Syntax - Conditions Tables.docx

Example JSON Data:

{
"companyName": "Encodian",
"contracts": [
{
"customerName": "Microsoft",
"value": 100000.00,
"expires": "13/06/2021"
},
{
"customerName": "Encodian",
"value": 6872500.00,
"expires": "18/02/2029"
},
{
"customerName": "Heritage",
"value": 13549.35,
"expires": "6/12/2025"
}
]
}

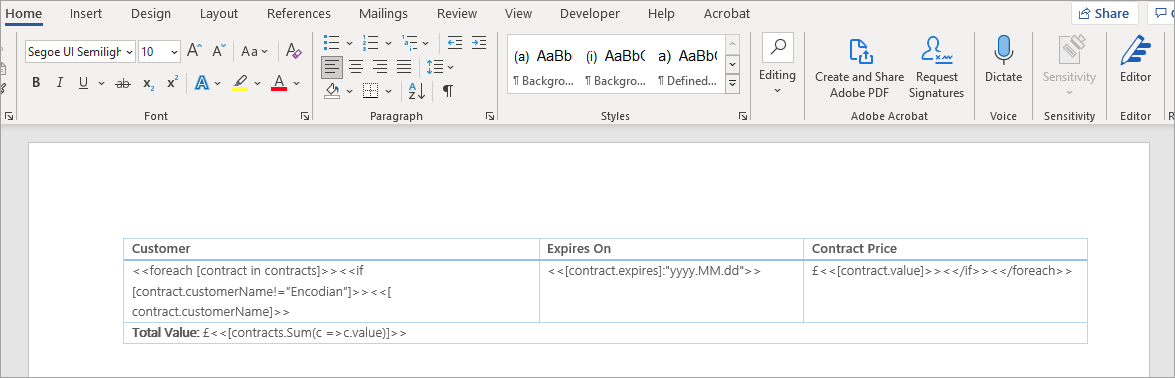

Configure the document with required conditional expressions and content:

Row 1 > Column 1: <<foreach [contract in contracts]>><<if [contract.customerName!=”Encodian”]>><<[ contract.customerName]>>
Row 1 > Column 2: <<[contract.expires]:"yyyy.MM.dd">>
Row 1 > Column 3: <<[contract.value]>><</if>><</foreach>>
Row 2 > Column 1: <<[contracts.Sum(c =>c.value)]>>

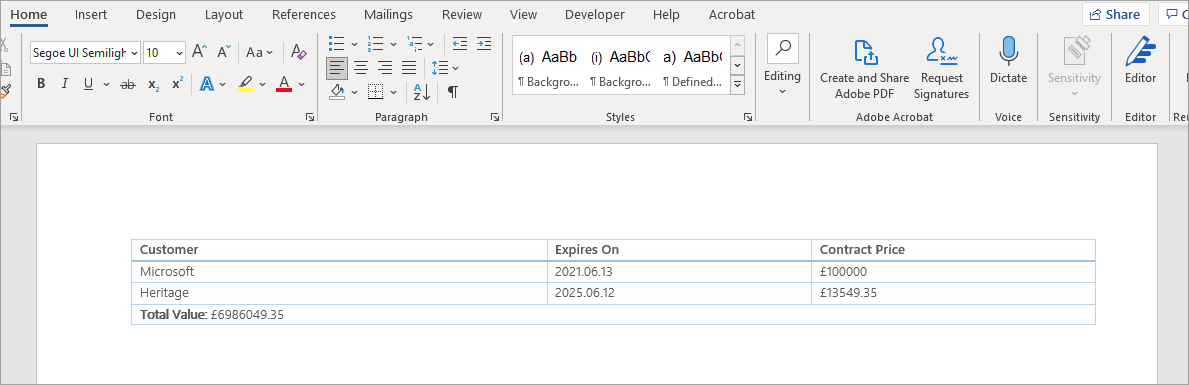

This generates the following output:


Conditional Expression Operators

The following table contains all operators that the Encodian population engine supports

  • Binary:  * / % + - << >> < > <= >= == != & ^ | && || ??
  • Primary:  x.y x?.y f(x) a[x] a?[x] new
  • Unary:  - ! ~ (T)x
  • Ternary:  ?:

The population engine follows operator precedence, associativity, and overload resolution rules declared at C# Language Specification 5.0 while evaluating template expressions. However, please consider the following limitations considering the specification:

  • Implicit user-defined conversions are supported only when specified explicitly.
  • The indexing of multi-dimensional arrays is not supported.
  • Whereas the object initializer syntax is supported (including objects of anonymous types), the collection initializer syntax is not.
