Split PDF by Barcode


The 'Split PDF by Barcode' flow action splits a PDF document into multiple separate PDF documents by barcodes and/or QR codes detected within the document.

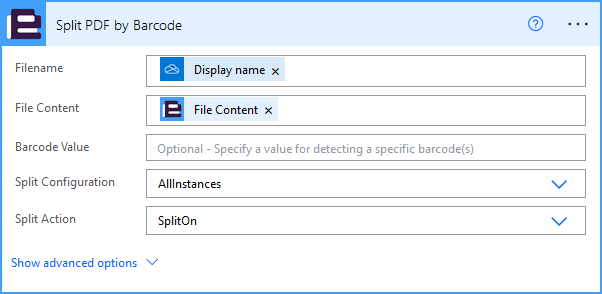

Default Parameters

The default 'Split PDF by Barcode' flow action parameters are detailed below:

  • Filename: The filename of the source PDF document (including the file extension)
  • File Content: A Base64 encoded representation of the source PDF document
  • Barcode Value: Optional - Specify a value for detecting a specific barcode
  • Split Configuration: Select whether to split on the first instant, last instant or all instances pertaining to the results provided from the 'Split Value'.
  • Split Action: Select a split action, whether to split before, after or remove the page containing the split value.

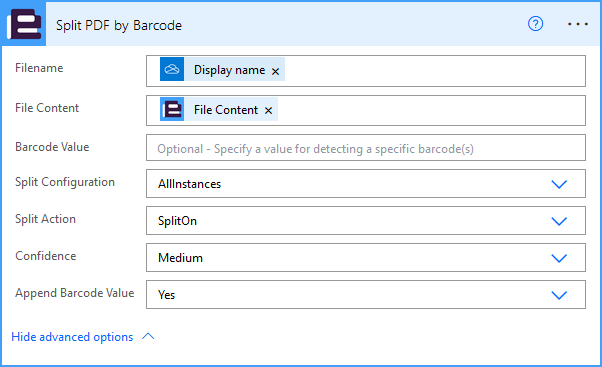

Advanced Parameters

The default 'Split PDF by Barcode' flow action parameters are detailed below:

  • Confidence - Set the confidence level for barcode detection
  • Append Barcode Value - Sets whether the barcode value should be added to the filename

Return Parameters

The 'Split PDF by Barcode' flow action returns the following data.

Action Specific Return Values

  • Documents - The collection of PDF Documents created from the PDF document supplied.

Each document within the documents collection contains the following values:

  • Documents Filename - The filename of the file
  • Documents File Content - The file content of the file

Standard Return Values

  • OperationId - The unique ID assigned to this operation.
  • HttpStatusCode - The HTTP Status code for the response.
  • HttpStatusMessage - The HTTP Status message for the response.
  • Errors - An array of error messages should an error occur.
  • Operation Status - Indicates whether the operation has been completed, has been queued or has failed.
