Add Text Watermark To Image

Overview

The 'Add Text Watermark To Image' action adds the specified text to the image provided. The text can be added in any of the following positions; top right, top left, bottom right, bottom left, centre horizontal, centre vertical or diagonal.

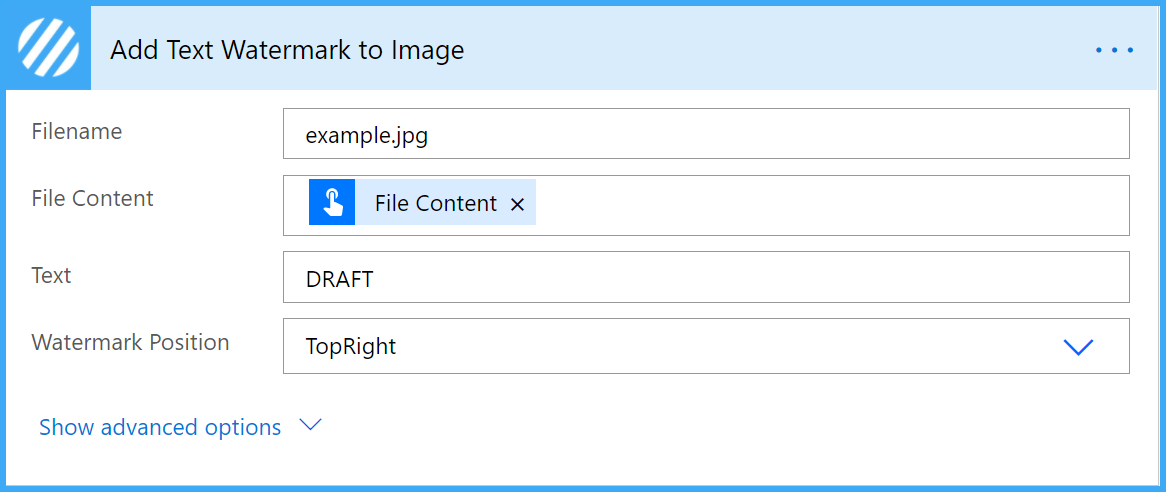

Parameters

The default 'Add Text Watermark' flow action parameters are detailed below:

  • Filename: The filename (including file extension) of the source image file.
  • File Content: A Base64 encoded representation of the source image file.
  • Text: The text to embed as a watermark within the image.
  • Watermark Position: Position of the watermark on the image;  top right, top left, bottom right, bottom left, centre horizontal, centre vertical or diagonal


Please refer to the Obtaining the 'File Contents' Parameter article for guidance on how to obtain the 'File Content' parameter ready to provide to an Encodian flow action.

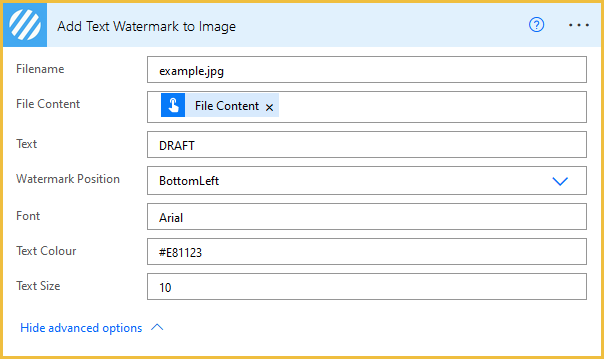

Advanced Parameters

The advanced 'Add Text Watermark to Image' action parameters are detailed below:

  • Font: Set the font applied to the text watermark, the default font is set to Arial.
  • Text Colour: The HTML colour applied to the text watermark, the default colour is set to #E81123.
  • Text Size: The size of the font applied to the text watermark, the default size is set to 20.
  • Operation ID: (Advanced) The ID of a parent operation, please refer to: Flow Action Return Options: File Content vs. Operation ID
  • Return File: (Advanced) Sets whether the action should return a file or alternatively an operation ID: Flow Action Return Options: File Content vs. Operation ID


Please refer to the Flow Action Return Options: File Content vs. Operation ID article for further details on the 'Return File' parameter.

Examples

  • Watermark Position: TopRight
  • Font: Arial
  • Text Colour: #FFFFFF
  • Text Size: 20


  • Watermark Position: Diagonal
  • Font: Times New Roman
  • Text Colour: #3FA9F6
  • Text Size: 40


  • Watermark Position: CentreHorizontal
  • Font: Calibri
  • Text Colour: #9F0DA3
  • Text Size: 30
