Barcode - Read from Image

Overview

The 'Barcode - Read from Image' Power Automate action read the barcode from image file provided. The following image file formats are supported:

  • PNG
  • JPG
  • BPM
  • TIFF
  • GIF
  • EMF

Example Flow

Please refer to the following article showcasing the 'Barcode - Read from Image' Power Automate action: Create and Read Barcodes with Power Automate and Power Apps

Credit Count

This action consumes 1 credit per operation.

Note, different Encodian actions can consume different number credits. Please always check the action specific documentation and read What is an Encodian Action for a full description of how credits are consumed.

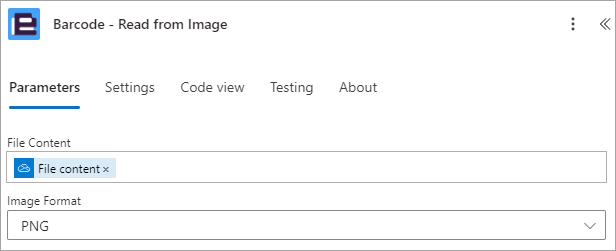

Default Parameters

The default 'Barcode - Read from Image' flow action parameters are detailed below:

  • File Content: A Base64 encoded representation of the file to be processed
  • Image Format: Select the image format for the barcode image provided

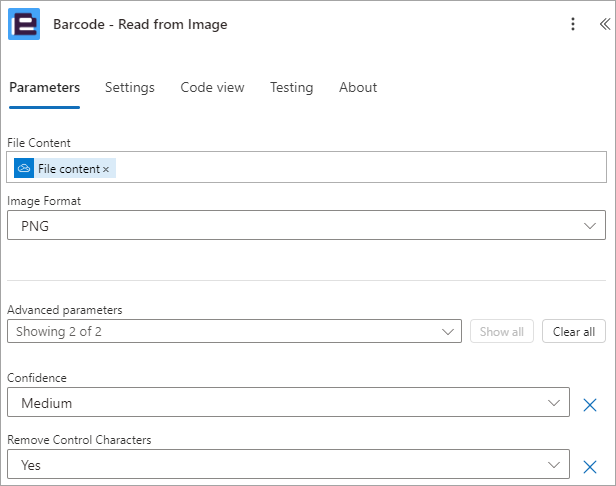

Advanced Parameters

The advanced 'Barcode - Read from Image' flow action parameters are detailed below:

  • Confidence - Set the confidence level for barcode detection
  • Remove Control Characters - Set whether recognised control characters should be removed

Return Parameters

The 'Barcode - Read from Image' flow action returns the following data.

Action Specific Return Values

  • Value - The value of the barcode

Standard Return Values

  • OperationId - The unique ID assigned to this operation.
  • HttpStatusCode - The HTTP Status code for the response.
  • HttpStatusMessage - The HTTP Status message for the response.
  • Errors - An array of error messages should an error occur.
  • Operation Status - Indicates whether the operation has been completed, has been queued or has failed.
