Read QR Code - Image

Overview

The 'Read QR Code - Image' Power Automate action reads the QR Code data from image file provided. The following image file formats are supported:

  • PNG
  • JPG
  • BPM
  • TIFF
  • GIF
  • EMF

Example Flow

Please refer to the following article showcasing the 'Read QR Code - Image' Power Automate action: Create and Read Barcodes with Power Automate and Power Apps

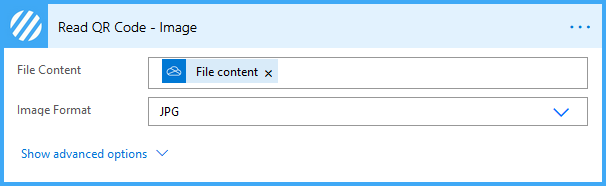

Default Parameters

The default 'Read QR Code - Image' flow action parameters are detailed below:

  • File Content: A Base64 encoded representation of the file to be processed
  • Image Format: Select the image format for the QR Code image provided


Advanced Parameters

The advanced 'Read QR Code - Image' flow action parameters are detailed below:

  • Confidence - Set the confidence level for barcode detection

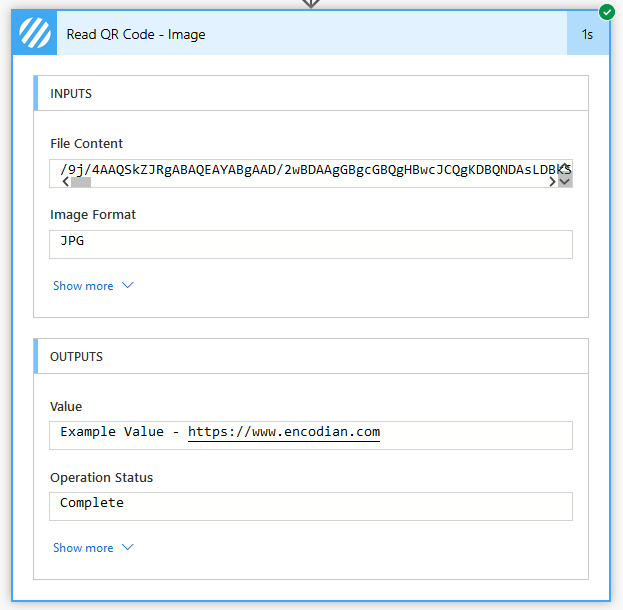

Return Parameters

The 'Read QR Code - Image' flow action returns the following data.

Action Specific Return Values

  • Value - The value of the QR Code


Standard Return Values

  • OperationId - The unique ID assigned to this operation.
  • HttpStatusCode - The HTTP Status code for the response.
  • HttpStatusMessage - The HTTP Status message for the response.
  • Errors - An array of error messages should an error occur.
  • Operation Status - Indicates whether the operation has completed, has been queued or has failed.
