QR Code - Create

The 'QR Code - Create' action generates a QR code image file aligned to the configuration options supplied.

Example Flows

Please refer to the following example solutions:

• Create QR Codes with Power Automate and Encodian
• Generate a Picture QR Code

Credit Count

This action consumes 1 credit per operation.

Note, different Encodian actions can consume different number credits. Please always check the action specific documentation and read What is an Encodian Action for a full description of how credits are consumed.

Default Parameters

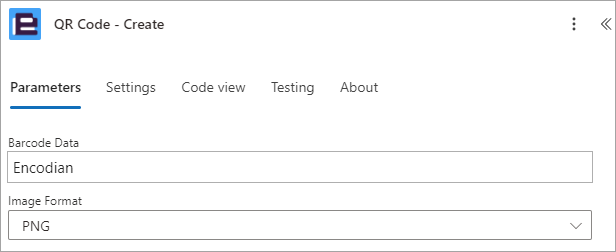

The default 'QR Code - Create' flow action parameters are detailed below:

• Barcode Data: The string value encoded within the QR code.
• Image Format: The file format of the QR Code image generated.

Advanced Parameters

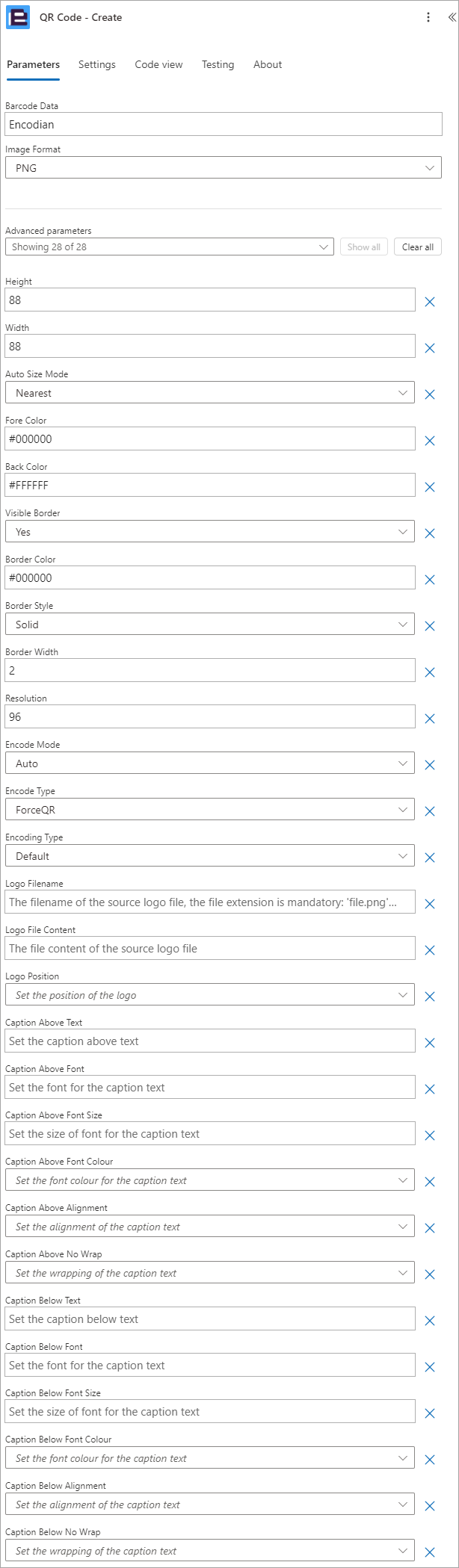

The advanced 'QR Code - Create' flow action parameters are detailed below:

• Height: Set the QR code height (pixels)
• Width: Set the QR code width (pixels)
• Auto Size Mode: Set the QR auto size mode, and use 'Nearest' to assure QR code readability
• Fore Color: Set the QR code foreground color (HTML Color #000000)
• Back Color: Set the QR code background color (HTML Color #FFFFFF)
• Visible Border: Set whether the QR code border is visible
• Border Color: Set the QR code border color (HTML Color #000000)
• Border Style: Set the QR code border style
• Border Width: Set the QR code border width in pixels
• Resolution: Set the QR code border image resolution (dpi)
• Encode Mode: Set the QR code to encode mode
• Encode Type: Set the QR code encoding type
• Encoding Type: Set the QR code text encoding type
• Logo Filename: The filename of the source logo file, the file extension is mandatory: 'file.png' and not 'file'
• Logo File Content: The file content of the source logo file, which will be displayed above the QR code.
• Caption Above Text: Set the caption above text
• Caption Above Font: Set the font for the caption text
• Caption Above Font Size: Set the size of font for the caption text
• Caption Above Font Colour: Set the font colour for the caption text
• Caption Above Alignment: Set the alignment of the caption text
• Caption Above No Wrap: Set the wrapping of the caption text
• Caption Below Text: Set the caption below text
• Caption Below Font: Set the font for the caption text
• Caption Below Font Size: Set the size of font for the caption text
• Caption Below Font Colour: Set the font colour for the caption text
• Caption Below Alignment: Set the alignment of the caption text
• Caption Below No Wrap: Set the wrapping of the caption text

Return Parameters

The 'QR Code - Create' flow action returns the following data.

Action Specific Return Values

• Filename - An automatically generated filename.
• FileContent - A base64 string representation of the QR code image file.


Standard Return Values

• OperationId - The unique ID assigned to this operation
• HttpStatusCode - The HTTP Status code for the response
• HttpStatusMessage - The HTTP Status message for the response
• Errors - An array of error messages should an error occur
• Operation Status - Indicates whether the operation has been completed, has been queued or has failed
