Archive (ZIP) - Create

Overview

The 'Archive (ZIP) - Create' flow compresses and adds up to 1000 files to a zip package (.zip).

Example Flow

Please refer to the following article detailing how to 'Retrieve a collection of files and add to an Archive package (ZIP File)'

Credit Count

This action consumes 1 credit per operation.

Note, different Encodian actions can consume different number credits. Please always check the action specific documentation and read What is an Encodian Action for a full description of how credits are consumed.

Default Parameters

The default 'Archive (ZIP) - Create' flow action parameters are detailed below:

• Filename: The filename to assign to the resulting zip file (including the zip file extension).
• Documents: An array of documents to add to the zip file
• Password: A password to secure the contents of the zip file
• Encryption: Set the encryption level which will be applied to a password-protected zip file

NOTE: Windows cannot natively open AES128 and AES256 encrypted ZIP files, a tool such as 7Zip is required to open such ZIP files.

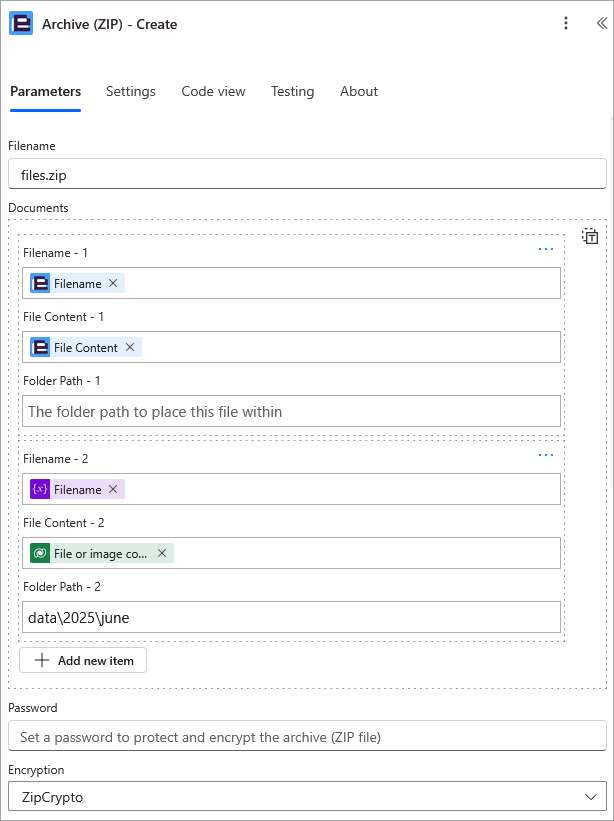

As a manually entered array:

• Filename: The filename of the source document (including the file extension).
• File Content: A Base64 encoded representation of the document

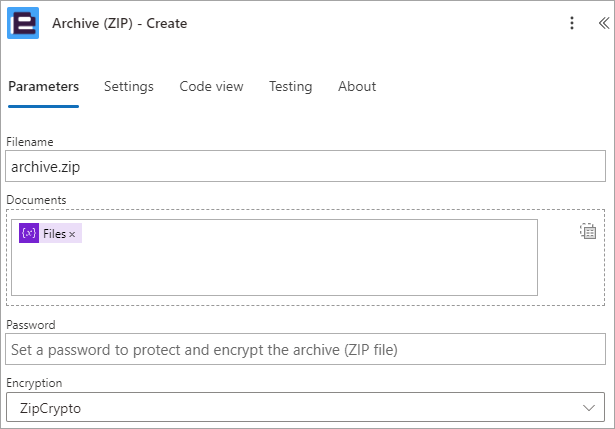

As an array object:

Documents - JSON Schema

The JSON provided within the documents parameter should conform to the following schema:

{
 "fileName": "<Filename including extension>",
 "fileContent": "<File contents>"
}

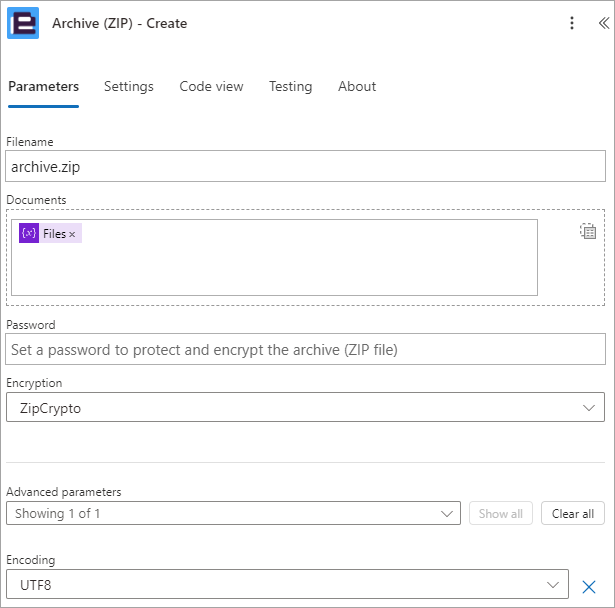

 Advanced Parameters

The advanced 'Archive (ZIP) - Create' flow action parameters are detailed below:

• Encoding: Set the encoding type used for archiving documents.

Return Parameters

The 'Archive (ZIP) - Create' flow action returns the following data.

Standard Return Values

• Filename - An filename provided.
• FileContent - A base64 string representation of the archive (.zip) file.
• OperationId - The unique ID assigned to this operation.
• HttpStatusCode - The HTTP Status code for the response.
• HttpStatusMessage - The HTTP Status message for the response.
• Errors - An array of error messages should an error occur.
• Operation Status - Indicates whether the operation has been completed, has been queued or has failed.
