Barcode - Read (AI)

*** Available from June / July 2026 ***

Power Automate Connector: Encodian – Barcode

Overview

The 'Barcode - Read (AI)' Power Automate action will automatically locate and read all barcodes contained within the file provided.

Input File Types

The following file types are supported:

• BMP
• DOCX
• HEIC
• JPEG/JPG
• PDF
• PNG
• TIFF
• XLSX

Credit Count

The credit count is determined using the following calculation:

1 page = 1 credit, for example a 7-page PDF document would utilise 7 credits

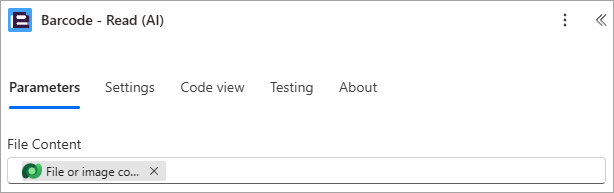

Default Parameters

The default 'Barcode - Read (AI)' flow action parameters are detailed below:

• File Content: A Base64 encoded representation of the file to be processed

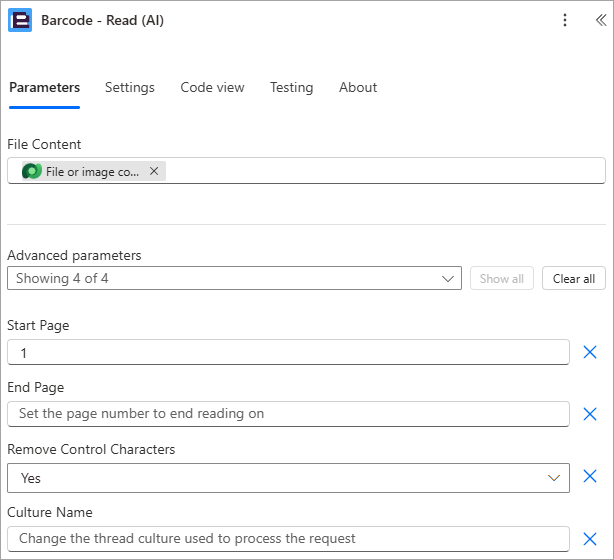

Advanced Parameters

The advanced 'Barcode - Read (AI)' flow action parameters are detailed below:

• Start Page - Set the page number to begin reading from
• End Page - Set the page number to end reading on
• Remove Control Characters - Set whether recognised control characters should be removed
• Culture Name: Change the thread culture used to process the request

Return Parameters

The 'Barcode - Read (AI)' flow action returns the following data.

Action Specific Return Values

• Barcodes - An array of 'Barcode Item' each containing the barcode value

Standard Return Values

• OperationId - The unique ID assigned to this operation.
• HttpStatusCode - The HTTP Status code for the response.
• HttpStatusMessage - The HTTP Status message for the response.
• Errors - An array of error messages should an error occur.
• Operation Status - Indicates whether the operation has been completed, has been queued or has failed.
