Convert - Image to PDF

Power Automate Connector: Encodian – Convert

Overview

The 'Convert - Image to PDF' flow action converts the image provided into a PDF document aligned to the configuration options provided.

Input File Types

The following file types are supported:

Where 'OCR Type' = 'None'

• BMP
• GIF
• JPG / JPEG
• PNG
• SVG
• TIFF

Where OCR Type = 'AI'

• BMP
• HEIC
• JPG / JPEG
• PNG
• TIFF

Where OCR Type = 'Standard'

• BMP
• JPG / JPEG
• PNG
• TIFF

Credit Count

The credit count differs depending on the selected 'OCR Type'.

Where OCR Type = 'None'

Each image is 0.2 credits; for example, a single PNG converted to PDF is 0.2 credits.

Each additional page is 0.1 credits; for example, a 9-page TIFF converted to PDF is 1 credit (0.2 + (8 * 0.1)) = 1.

Where OCR Type = 'AI'

Each image or image page (TIFF) is 0.2 credits; for example, a single PNG converted to PDF is 0.2 credits, whereas a 9-page TIFF converted to PDF is 1.8 credits.

Where OCR Type = 'Standard'

Standard OCR is a resource-intensive operation; therefore, a credit is used for every image or image page OCR'd. For example, a single PNG converted to PDF is 1 credit, where a 9-page TIFF converted to PDF is 9 credits.

Note, different Encodian actions can consume different numbers of credits. Please always check the action-specific documentation and read What are Encodian Actions and Credits for a full description of how credits are consumed.

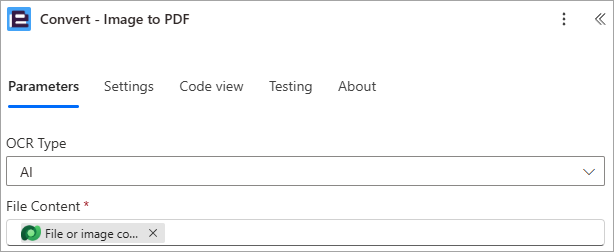

Parameters

The default 'Convert - Image to PDF' flow action parameters are detailed below:

• OCR Type: Set the type of OCR to be applied: None, Standard or AI
• File Content: A Base64 encoded representation of the file to be converted.

Please refer to the Obtaining the 'File Contents' Parameter article for guidance on how to obtain the 'File Content' parameter ready to provide to an Encodian flow action.

Advanced Parameters

The advanced 'Convert - Image to PDF' flow action parameters are detailed below:

Where 'OCR Type' = 'Standard'

• OCR Language: Sets the language to be used for OCR



Please refer to the Flow Action Return Options: File Content vs. Operation ID article for further details on the 'Return File' parameter.

Return Parameters

The 'Convert - Image to PDF' flow action returns the following data.

Action Specific Return Values

• File Content - The PDF document

Standard Return Values

• OperationId - The unique ID assigned to this operation.
• HttpStatusCode - The HTTP Status code for the response.
• HttpStatusMessage - The HTTP Status message for the response.
• Errors - An array of error messages should occur in case of an error.
• Operation Status - Indicates whether the operation has been completed, has been queued or has failed

Error Handling - 'The translation request has been throttled'

Potentially, at times of peak load, the following error could be generated:

"The translation request has been throttled, please contact support@encodian.com"

This will result in delayed processing execution. For paying customers with a 'Large' or higher subscription level, a dedicated processing endpoint can be requested via support@encodian.com to help alleviate this issue.
