Swiss QR Code - Create

Power Automate Connector: Encodian – Barcode

Overview

The 'Swiss QR Code - Create' action generates a Swiss QR code image file aligned to the configuration options supplied.

Credit Count

This action consumes 1 credit per operation.

Note that different Encodian actions can consume different numbers of credits. Please always check the action-specific documentation and read What is an Encodian Action for a full description of how credits are consumed.

Default Parameters

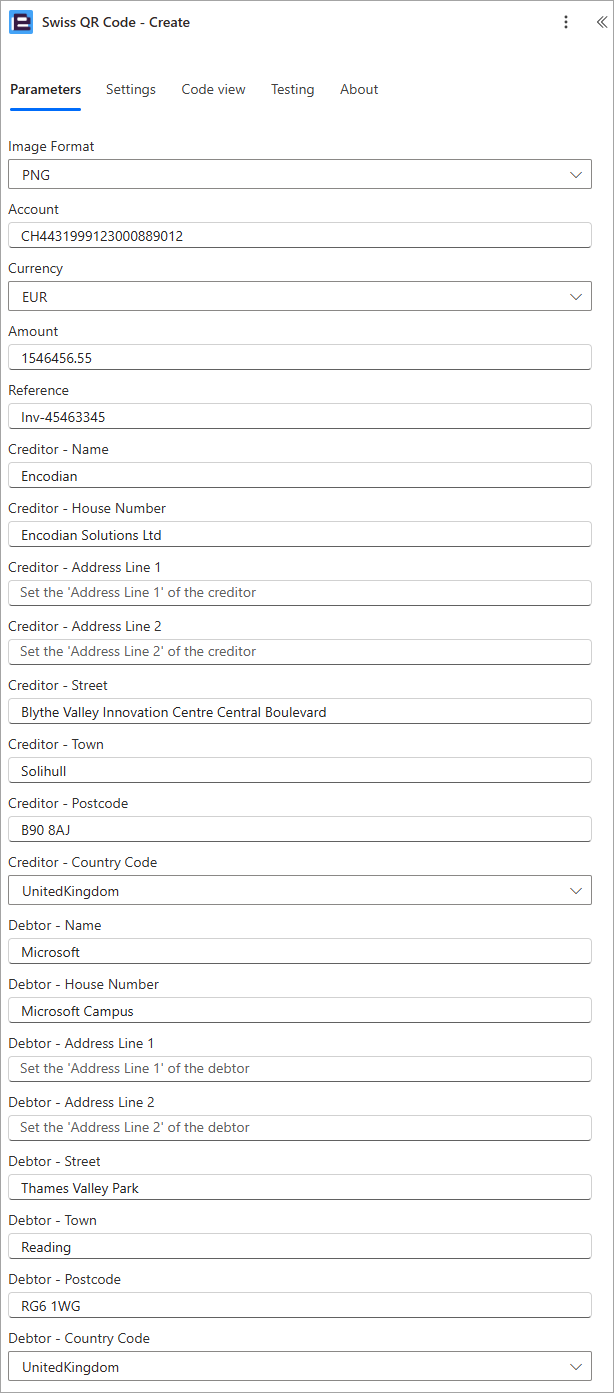

The default 'Swiss QR Code - Create' flow action parameters are detailed below:

• Image Format: Set the image format of the Swiss QR code
• Account: Set the 'Account' value
• Amount: Set the 'Amount' value
• Currency: Select the 'Currency' value
• Reference: Set the 'Reference' value
• Creditor
  • Creditor - Name: Set the 'Name' of the creditor
  • Creditor - House Number: Set the 'House Number' of the creditor
  • Creditor - Address Line 1: Set the 'Address Line 1' of the creditor
  • Creditor - Address Line 2: Set the 'Address Line 2' of the creditor
  • Creditor - Street: Set the 'Street' of the creditor
  • Creditor - Town: Set the 'Town' of the creditor
  • Creditor - Postcode: Set the 'Postcode' of the creditor
  • Creditor - Country Code: Set the 'Country Code' of the creditor
• Debtor
  • Debtor - Name: Set the 'Name' of the Debtor
  • Debtor - House Number: Set the 'House Number' of the Debtor
  • Debtor - Address Line 1: Set the 'Address Line 1' of the Debtor
  • Debtor - Address Line 2: Set the 'Address Line 2' of the Debtor
  • Debtor - Street: Set the 'Street' of the Debtor
  • Debtor - Town: Set the 'Town' of the Debtor
  • Debtor - Postcode: Set the 'Postcode' of the Debtor
  • Debtor - Country Code: Set the 'Country Code' of the Debtor

Advanced Parameters

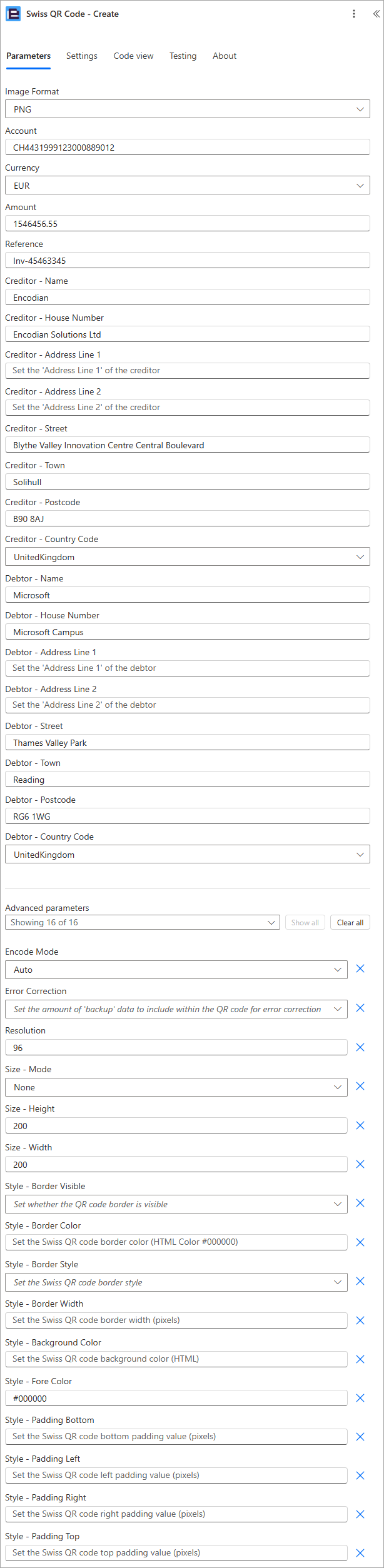

The advanced 'Swiss QR Code - Create' flow action parameters are detailed below:

• Encode Mode: Set the Swiss QR code encode mode
• Error Correction: Set the amount of 'backup' data to include within the QR code for error correction
• Resolution: Set the Swiss QR code border image resolution (dpi)
• Size - Mode: Set the Swiss QR auto size mode, use 'Nearest' to assure QR code readability; however, this setting may also override the padding configuration applied.
• Size - Height: Set the Swiss QR code height (pixels)
• Size - Width: Set the Swiss QR code width (pixels)
• Style - Border Visible: Set whether the QR code border is visible
• Style - Border Color: Set the Swiss QR code border color (HTML Color #000000)
• Style - Border Style: Set the Swiss QR code border style
• Style - Border Width: Set the Swiss QR code border width (pixels)
• Style - Background Color: Set the Swiss QR code background color (HTML)
• Style - Fore Color: Set the Swiss QR code foreground color (HTML)
• Style - Padding Bottom: Set the Swiss QR code bottom padding value (pixels)
• Style - Padding Left: Set the Swiss QR code left padding value (pixels)
• Style - Padding Right: Set the Swiss QR code right padding value (pixels)
• Style - Padding Top: Set the Swiss QR code top padding value (pixels)

Return Parameters

The 'Swiss QR Code - Create' flow action returns the following data.

Action Specific Return Values

• FileContent - A base64 representation of the Swiss QR code

Standard Return Values

• OperationId - The unique ID assigned to this operation.
• HttpStatusCode - The HTTP Status code for the response.
• HttpStatusMessage - The HTTP Status message for the response.
• Errors - An array of error messages should occur in case of an error.
• Operation Status - Indicates whether the operation has been completed, has been queued, or has failed.
