PDF - Extract Images

** AVAILABLE OCTOBER / NOVEMBER 2024 **

Overview

The 'PDF - Extract Images' flow action extracts images from the specified pages of the PDF document provided.

Credit Count

This action consumes 1 credit per operation.

Note, different Encodian actions can consume different number credits. Please always check the action specific documentation and read What is an Encodian Action for a full description of how credits are consumed.

Default Parameters

The default 'PDF - Extract Images' flow action parameters are detailed below:

• File Content: The file content of the source PDF file

Advanced Parameters

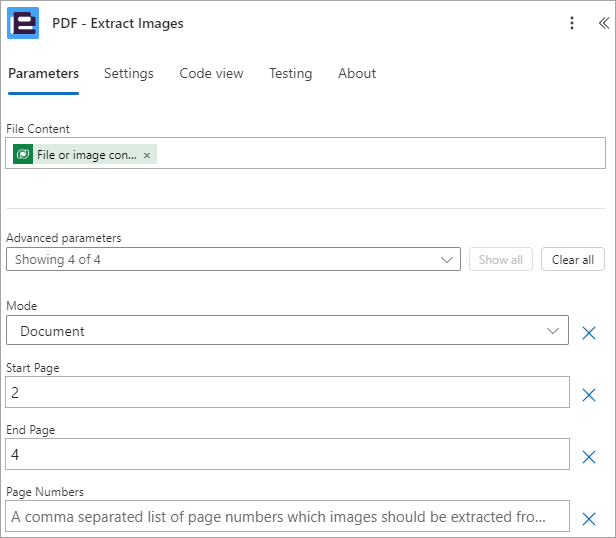

The advanced 'PDF - Extract Images' flow action parameters are detailed below:

• Mode: Set the image extraction mode (Document or Resources)
• Start Page: Set the page number to begin extracting images from. By default the first page will be selected
• End Page: Set the page number to stop extracting images on. By default the last page will be selected
• Page Numbers: A comma separated list of page numbers of the pages to extract: 1,3,4

Return Parameters

The 'PDF - Extract Images' Power Automate action returns the following data.

Action Specific Return Values

• Images- The collection of images extracted from the Word document supplied
  Each document within the documents collection contains the following values:
• Filename - The filename of the image
• FileContent - The file content of the image

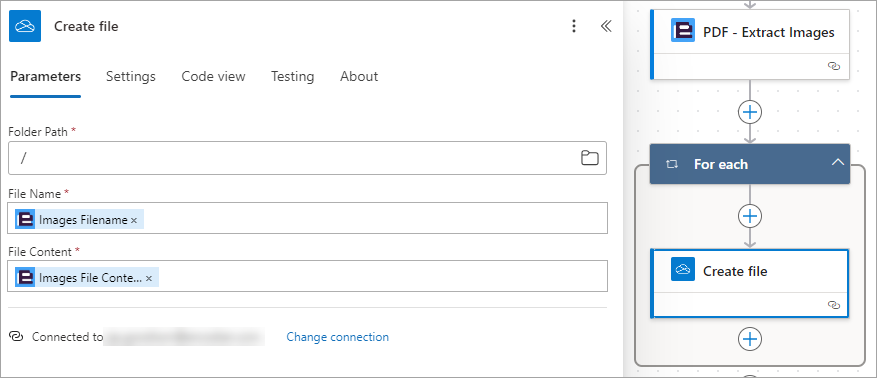

Working with the images returned (example)

The following is an example of the JSON payload that is returned in the response.

"images": [
 {
 "fileName": "00001_00001_image.jpg",
 "fileContent": "/9j/4AAQ...."
 },
 {
 "fileName": "00001_00002_image.jpg",
 "fileContent": "/9j/4AAQ...."
 },
 {
 "fileName": "00002_00003_image.jpg",
 "fileContent": "/9j/4AAQ...."
 },
 {
 "fileName": "00003_00004_image.jpg",
 "fileContent": "/9j/4AAQ...."
 }
 ],
 "HttpStatusCode": 200,
 "HttpStatusMessage": "",
 "OperationId": "**********-****-****-****-************",
 "Errors": [],
 "Operation Status": "Complete"

Standard Return Values

• OperationId - The unique ID assigned to this operation.
• HttpStatusCode - The HTTP Status code for the response.
• HttpStatusMessage - The HTTP Status message for the response.
• Errors - An array of error messages should an error occur.
• Operation Status - Indicates whether the operation has been completed, has been queued or has failed.
