The Encodian population engine supports image insertion using the following two methods:
Please ensure you have followed the Spreadsheet Preparation steps.
Spreadsheet Preparation
When using the image token you must add the token inside a text box, please follow this instruction:
Insert Image - Hyperlink
The URL must be publicly accessible, if the URL requires authentication the image cannot be accessed and therefore would not be inserted.
Example Spreadsheet: Encodian - Template Syntax - Image Url.xlsx
Example JSON Data:
{
"imageUrl": "https://cdn.apps-encodian.com/logos/Encodian_Logo.png"
}
The image token requires a single parameter, the URL value, see below:

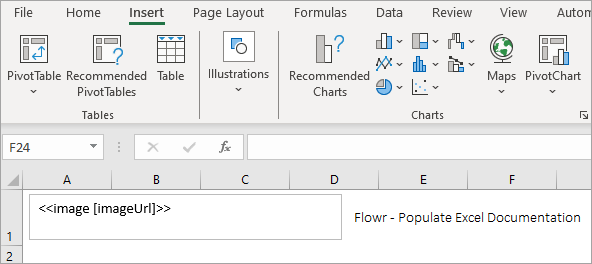

<<image [imageUrl]>>
This generates the following output:

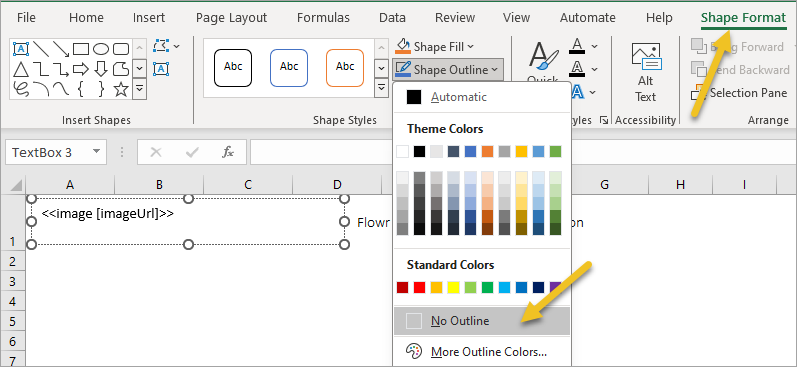

Clearly, this doesn't look great! Firstly to remove the grey border from around the image:
Secondly, utilise the switch, this is further explained in the Image Formatting section of this article.
<<image [imageUrl] -fitSize>>
This generates the following output:
Insert Image - Base64
Example Spreadsheet: Encodian - Template Syntax - Image Base64.xlsx
Example JSON Data:
{
"imageBase64": "iVBORw0KGgoAAAANSUhEUgAAAMEAAAA8CAYAAADfTt5bAAAACXBIWXMAAAsTAAALEwEAmpwYAAAAB3RJTUUH5QkcDA8uz9ZCowAAAAd0RVh0QXV0aG9yAKmuzEgAAAAMdEVYdERlc2NyaXB0aW9uABMJISMAAAAKdEVYdENvcHlyaWdodACsD8w6AAAADnRFWHRDcmVhdGlvbiB0aW1lADX3DwkAAAAJdEVYdFNvZnR3YXJlAF1w/zoAAAALdEVYdERpc2NsYWltZXIAt8C0jwAAAAh0RVh0V2FybmluZwDAG+aHAAAAB3RFWHRTb3VyY2UA9f+D6wAAAAh0RVh0Q29tbWVudAD2zJa/AAAABnRFWHRUaXRsZQCo7tInAAAWdklEQVR4nO2ce5hfVXnvv993rf27TWYmA4GEhMwlCSBgwIRMJgkSgkBuBK1UW+051qJiFS0q5zwiTxuOipc+ltJytB5Fa1tO0VqQlgPkJvSBIJAbAUQJxjCZJM39nrn+fnuv9z1//GbCBGaSyTAJbWd/nmf/kcxa73732uu71rvWu/aPZoaUlOGMvN0OpKS83aQiSBn2pCJIGfakIkgZ9qQiSBn2pCJIGfakIkgZ9qQiSBn2pCJIGfakIkgZ9qQiSBn2pCJIGfakIkgZ9qQiSBn2pCJIGfakIkgZ9qQiSBn2pCJIGfakIkgZ9qQiSBn2+FNpfNy4GblqVOejKK+DqR/HnTKyvTV+9tCzbUPtW0pKDzxVvzYxY+L182F2W7BwhsGSwdigURxdAtqPxm7Ofv8he2hQYkpJOR6nZCaYPGZuIZ93d0YuM82CAuTgDLFcVVXfsb2u/RkAvxxSR1NScIpEkK0q5rWUrU5CjGAJ8BYmGy0roQDjWUPnYcpgIcnpdQveC5GrRHAkUfx0bfOjv367/XornBIR7C1WhrMl6TcEOpkIjARgFpNsHwLXUgYIuZi1tWujwtZK60Ar667oCCtXrgzT6+fdBMp3hIwIwiH5g6b6eTesbln+n3aWPiUi2Lp1bNuZtVsT5/CmWaCtnYhj6ElESFLIS1TI6LsArBpSR1P65bK6VfOFbrHWHdZKMurcWnhlyrlXfj2KKj4pRBSHIgAg47ITE+pHAfyPt9fjwTOkIrDmK6ehMlzevJLVN34qf9bhI4Bzr/+9qwhMe1eCyRdpsKAnjJJEgFJCffrZrN+xi3dMnzCvwVR2OEguiP56/Ob8knSxfGoQyrhIopnBFE4cEk2qRKwS0FzvF2cAzKzybXN0CBgyEcSvzprpKqMHJYrG1o4y1FQadu9TVOTLf29rJxrfFXDPXV2oGWUOpQEazhvWPxfwhdsrzmlrj74YRQZA4MGubbXttwD4wVA9Q0ovgsUJEqgpDAYzixVhl1f8i/PRxRCCFJhZm1p4+O12960wZCKQIFeKl7HYF6PjCBDMgyAIQA2IY+CSiwLOOBvAQcqAFssGoERcdrGivjbBmhcMld5gBkQ+m6PyWqQiOF24uCMXGEXfoIsTM7vGTDs18IfPb338sbfbubfCEIZDaigqoAa1Nwf8R9cAJQABA98xSgDjsWEVAJgpjAOeT1KGgGxUzD6/84k9AL6ymIu/eqfd+V/iJ82Hck1w3AYxAzqLAPIGJAAGEskbgBwQOoi2NvaVbhjUS5jWMP98mk5Q+BrnrFMTtGjJ/2b9zkc631h29vjZ2VbnRxsyjCyRYL5z/dZluwBgxrkLJlsG52usleZ5AMCr6zYv2zggH+rmXUC6BgI1ABNV256Ujmx8cdcv9g2k/pTaa8+huDpRjvMCD+X+xHVtXbf53wZ0fwCYPmFBZZIk5ztxtQZkncjuUhS/+sJvfr4T0Bg4duTJ+GyYMW5GrivKjeb4qLR04jwXlxKd+O/Vu/pbmzVNWjAuTpJKAAhdlftf2vXQ3p57W4hHxUw0Mi8lxgdeannqcGPdnNGAL8T0qqp8eVvTFrM7rWnSgnEW6zsDOcY7FC2gxR868quhOE1wSo9NAOVeSgKFguHJX3g0PRZw6UWKUDxxD3YE4gh4+JEIG5sFuZyd1PbqG7msbt4c59wnBe7dBox1hIMC4rhf8smL0+sX/u3aLUv/yXql0UtRxbSsue8aLCsSOWe2etr4a/+Pj/xNFnEBzM4W72AAhNw2vWHhckbJ11dvXNHSlw9NddfNAe3TIn6mWRhLigMU4qw9V6h+palh4QPx/tL31x95/Ehf9afVzbvAebkp47LXGJJJcKgwAOYsdsjtbJqwcJUq/m5ty5Jl/bXD1KlTfXTonD+EyR95F10CaLWAMLVSNs6+OrN+4XeDODpDEUC2XIvWdqjYkT2z8qqCZO9RBoU5cd63bB7f+lEAO3vsTx4zt5DPuQ+A9juEO8/T1wBAVCjumt4wf6UW7W6fkcvp819zmgQ67zRx3wPwl5TC3Z6uUUxVhZha+9ytjQ0LJ3nKTUHwDkd6mIFkq55R83xjw6K7125+9JGT7Qu9OeUi6CGXBfYdIG6/I4dRZ3Z35hN0aBEgToA9+wgfGbwMbui/gTfI9oaOL3pxt5NSZaagCAj27G6cKZSrTXBlY/2Cq+fUzPnckwefbAcAZygE2iVkOQQLlpwFJ1cDbowhlMMyAARgdOO9uE+EwMlNtXM/tHrr60KYzdmus27EF53IbRRWByvHhGqhXICsMKBRxDVmz8xdM71h4WfXbF7y297P0Thh4Q3i/F0CaVCG7jbs3mUjIxC1jq4WYotmTFj4nUzcdsfKbSuLvW1Mn7CgMsLoe0jeSBpUjy58ATJj0EuU9j2qbQsI7D37RqNyCkO1kecBAlKgGmchbVFPmWkN7zm/UMj9NSDzSIiZ9nppNs5LdFmSCVfECDs8dBJJCAVCnAUAhNVBeB603EGE8h3CGhQo+6kKAiBZKfRzBNbUVD/vM6tblv/dILoGgNN4itQMyGTKi+Qdu4ide4ide49/bd9N7N1PZDKAd4NPPP97fcftpP+mwapCiAESqrpbLaxX1S0AoRaglngv/uOdNYVvjxs3IwcAJghq2hE0QaIxQFQLOcYQIBQ48XBSHkuCxiiFIhxdkzn56uLFi492oY76wpecyDcUoToOJZgaHP3R+kIiaIw4lACRuSD+4cLa+WN66jdOmLvIUf5WgIY4FBE06b5/1F3fwUwRhxLMQkHovliMRnxrNmcfjWlmc7Yz4C7H6MagCZIQw6yXHywXNRhEZDyJTO92DBYTyjhogp7LYF3ORQoATbVz6x1zPxbxC1RjSUIJZtrdycuDTmIJKDZNyPcmoaRJtx2UV4swWNdR26YgpAEoDzKODl48SEK7n5VAHnTfbDx37sWD7B6nbyY4ekNfvk4XjXXzr3ZOblcLMDOQUjLYPQHhR4HcTysVIsn/DlUWC+zMOBThXHTjuGjkUwD+AUbrLT8zg4iDmb4EsUcItlmwWaBcR8CZGZJQAsBFS+9bd+mdd+LFxoYFsx3dlwwBagmEHgCKqrqMlPU0q1DatU6iKaoJ4tCFrM/NrPLhKyQ/NWX8vNHOubtBjEy0BFIgdFDVtUI+BcGREJJ3ErLACSt7OjhFbulsyK0BcD8AdNZm3ieQjyehhLKIPWBWhNljBqwyswiw2UJeYzDXV3v2hcZIAMDEfdnTX1ZKugAATiKYhdeC6qMgmwnUA3Y96CaZJSB44kGYBJSHVfVBghtMUG+GDzq60cECEo0RSXa0+vD7AO4YqM+9Oe0iAMqzwWAoT4Po3nolaMf3/8ILPxhVObkZcBWqRQh9UNpX1jUv+cYbit4zc+KCLaq8D0Bl98Lj5gsv/OCPa5QJ+LrDTjxo9m9w/MPVm5ZsB4CpUz/powPbFxv5Z4YgZaFIDV1yMYAXhfwMKSOSUALhQOKAJfjCmq1L7+uxO2PC9X+pGt/jXfQhg0HNQGDCFbhCOkQ/5CRzXrm+QCjB1O7qMv/nL7c8eqjHRmP93Plm7ntCV6cW4OEg5j499ZzrHxqx63AJdRU3EnQBCtJBwH0QfH5V85L7e7XZX1QW2z8L8Gs0K9gA5t/MiHyxqX7eJaB8INEYAOAlAmDLDfIna1teD+umTFj0XW/hXkd3VTjB4WJSAMMBAh9bvWXZ0VzEtPr5Dxpwv9CNUwswGEiZMpVT/Xpbf9Inlk9bOEQCpsCRNqK1lWhtG8TVTsA8RFw5BCHi490z235gkprOLo++Dmba3NnVft/kMXMLF4ycNaLnurBmTsXuffufUNPVIr57mselhY4jk+lCTPSE3QJTLWlIvr5609LtPfdZv/7epKsr/g5ov3HiutcIBCG5yXXvHqlqV6omAAgnDjR8r7cAAGBV8yN7Ym29Naiup+HhEOLfKyXhIwffmcsK3aKeHQEnHlD9+doty25/ecvrAgCAtS0rliWGrwBIyiFDgBFTcpnOCw6fWzlaKFPKaxDC0amZ3r2qeen9vW1s2PBAvKZ5yV8Z9J97wrzjvldQkyQjJu5qoatQCz2z1JYQ5NNvXNe80PzopjjYZwHbKSeYCJw4KOxfVrcsOSYZt65l2VNm+o/srl8WAUf4htH5EzrcB6dtJlAFSjExd06CKZeG8jbpyRykc0Si6Hx8pf/Bb3+LHcGbi3y09Hh1IoneQXCUde/HGuzMimzhJ6ZwuWxV7w1Xq2BezXSCWgID4ESyMExSC5uP+gACxOGis21vvFdFdVtniKv2ALzwaHmljnAV5wWz0WYGggga2tTsZ335+8LWZ3ZOqb12UWvFyH0bNjwQA0DTmLn1lueEnhHZACXxkPXzIYhpssxEWkiZ1B2PF0omEx1LTs2dXT6US6jqXir/tb+2U+XDpP43glF/ZbobxXzS4WLzF0n3KlooCKYr1m55dHNfVV7cuuyV6Q0LnhH6D6gdJ9VjgHPyWp/+wbbLsWXNH4wGFWOcchEQ5b7e2k5cNSvBXd/sQm6E4aTTXBkBHIo3fVm/TT61aWCVrJqQ7vDLQPIMJ5l3s59oVzVATSFCOHokoVRJkV5rgu4xPvg3dYz2YuSyhOvZTTGUUyESWAXpXmzSQU0PmnXu6M/jF7b+fGfvf8c5yzmzEUC585qGODH0W5+j9h/CwbP2kJzUHVIBRLXSRngiMhgEgsDQ1uXD/v7siOlu0HWAqO6vTPk5zUIIJH0Veg0rBLf3XwswCzvR34voXS6gn0InEOdJcFpmAjMgSYBJExS5UQbs5cCSZb0JLOduYuSO3bPoHwG7Xu/AhKq1B5SarRycvSn1RlABipmx3GllO01975drwJvqHQ8t77X3vktBXKEKwK6B1LcECXy3DQNIiphl+yvvdp2RRxZVvfyFkZ0CXzSDgpBuKWcrvCv0Z0dERsA020fy/9inASDOWQJ0HeM3taqfKj13GNChO+vjPQ01py1Zls8ZnnzG4z1PB1w0KQwoWdbbiAtAAPjr5ax+/3uvz++0N2d331yPmwOtU8h8+Z88Ekw/EZw050vuGClZJEknipbp0pB4ZpmBhJG7d9uhMVeYGU/CWwDdncPAjoSb86KtQqlUC3D0NcrkagBvyuzO5mzXVV/4FuAOJE5/sn7T0mb1FXvJ0g4hz00sgJQI1GsBPNTnI2fYJHATVctbk2aWqKHFw+8W0QMGG6Wm8OLOTuJwBYCWPu2ozhHnc1beFu4fo3TSWRbuaOjTHaldNb16QeWaw0tb31jlnaNmnF2oqplh9h/jAPBpWxMU8sDW7cQt/zOHsWP0pDO/FCAEVOze6+8dXxc6Z0y8bgNC+LNVLcu29Fenix2vZlD4FSmNQWM48WcT7r8//9pjt7yx7OTJcwsj2rO3Ic/la1/7f8/2/P+siQs42ASFEtmXdyzd3li/YL2ju7Ic/5pQ3edn1s5f9dzWZS/0Ll8cn/8U6W4VEgi8ual+wWP5MRW36J7ik6BMB4BQFsIfNE287qnVrz32T73rTx3/ngneZxaTzKsphB5mttHH4Td7IraNNtkg4q7o3lHJeLjbLq2f+8uXWla81NvO9NoF74HIx3QAndRgzOeYsF2fVqGSlGAJvPgpega+PGPcjD9dtX3V0Vli9viPZguVI+8Q8B3J4D49H3JOmwjMgGwGaG0DXt4gJxlUlCHoK/K8yHvAib+sFOwAgM/1V/6llqcON9bPu1/ENSoJ1eBE3J801c0fBdi9XZpsjDJemPCCHOQz9Hi/arh5Wv38v4kz7t6XNj7Wb+w9EBzLcasi/MhRriSJYAFO/PlK/vO0+nk/BOSXAmRBu8acfIwWEKsi6/Njgyaz2luOSK6QuU8t3CTialQDSFdlat+/rGH+FUJ7AmodAC/wPvNxUiYHjct7UxDEmvx43Y7HDwDAtNp5PxWRK0giaIATf3HW3M8a6+f/UKnP08zT3Cxx/DiAMaEnm32C18Iu85ZUPsNs+yqPaFZsJYTyLtGtlhl5XmPd3J9qwA4Iz/GR/B4h7ws6INunhaETgQ6sW2cyQLbfiPZEGMwCkgCUv8LXc05UgwflR0mNLopc9ppS6ELQAO/8h9XCoqxEe8onKHg2ISNKoQgnflTO5/+XD8l+AN8OSTDIgPNGx3pr5XjWtuz7sdaPmR+57IfL2d4YQj/Jif9zM+skzIEuYxYQLMBLhESTNtNw68u7VnQA+HVjw/xvOPF/ARpCecu3KqK72WCfMCIRsmCwnuwrIp9BCOHnObT9TY8/Iyqq/r6z2LHIu8z8OOnJOruJju6bYmw3UijMm4Xuya9nW+P4xOzKrtu+Yu/0unlfFScPOvEjEo3LYaz460V4PclW0CoISjAtL/JP0S+dnCxDlidQg0dUNpfJAHIcSZgN/uqBGFiYvubw0tbg7Y+DJU9FLgdHh+4kTSUpE4WcYLARAcnR4wdxKP2ks9TxMwAQJwIwIssfkRCWibz2/XSEJ8tnasply9sf6219InSfDyF5yEvUnUlVqCYwaF5hGe3uvBmXAyF7YXbzmpZlK3pMr2sp3G2GO4WSRC4LdHd4Nc0YtBAsgZZHd2RcFkHD4wjJJ3+x5RdHcwlPbnigPRb9jGl4NuOyPbtVZTuwCoPmy/v8AsAOwqwo3c8CWAQABpHezwhaZFZujzVbli9XS74gkMORywIEEo2hUBi10mDS/Q4TM93Wc26o/HFOeRfIrKcNu9vb+t5CMqPrXQ5vYUAfMhHQ2ToL2oqxGbTsyeDgoSxymQhehvLKwEsGkWTBsuvrB+Lb+k1Lm1kM71dNvmawzUKXCHs++hEIPQSuZGYbYgu3spj/2EvbntgBACTNU44Q0g5Ih4jv84N/tUDCdQLsJNhOsMPwejyxqvmRPR2dyUeC2m0w2yjiEuei8rkdOjjnQchhs/CvIdj7Vm9e8n972zd7SFc3P3qHwT6sGlYKfVv5vI8/evZHxCVm2KQIi2Mr/W7vA3y92yIE3BAs/G+Ae7z48vkjuh5fOg18WAw3irhm0nUA7KBIp1qgJ42UjvIzokPg2oDXc1RrNi//YQj2+2b2pNB1eMnAsce+A4jtQvkcIX/lJOogpR1gJ4kAAEIpAewgpJ1gBxz7TIhSqAB6ynVSXFdyRjyonaQhC4f8xc8tx45ZHzmy1c2/9+8zsvdQolUjhsY2zagqIcAUAGGMPNyvomxmwCcHV21ffhDA4in11/1ALLncKS4w0RoaghF7nMlGceHpNc0r9vauF3fGL7osP5SYiECFzkoV2eqWN9qvqZPW0lZ8KXHJmWYWNMTOw17pXaY7tPnWzPOv+8dQsitBvUhNq0EWncpWp3h+1bbcKjvOd9Orm5c+OGPcjEdDdtTlRHwpjOPM4A04QPBVH+Tp57Ydfy2zdsuS3QA+N3PCNT8I6i8HMFFpBW9un1hYe7BQtWLDhgfi6fXXHVCLK8w5uthaa+qltXMLn0YIv6tQFYFIIm1RaD2mzdZseWz55Mlzn65oxewEbioRxgioZrKJEZ5YvWnphstrrz2n6PiqqQVIyUeiGwEgMPwpYKMMSBSxV2if30f4EH6WGF4xWFDEzgfZn6tt7zjec/fHKfsFupSU/yykP8ibMuxJRZAy7ElFkDLsSUWQMuxJRZAy7ElFkDLsSUWQMuxJRZAy7ElFkDLsSUWQMuxJRZAy7Pn/veLm6x0x+vwAAAAASUVORK5CYII="
}
The image token requires a single parameter, the Base64 value, see below:

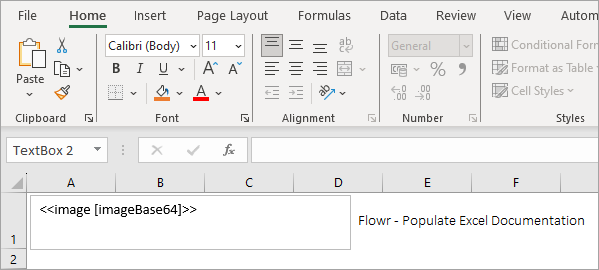

<<image [imageBase64]>>
This generates the following output:
learly, this doesn't look great! Firstly to remove the grey border from around the image:
Secondly, utilise the switch, this is further explained in the Image Formatting section of this article.
<<image [imageBase64] -fitSize>>
This generates the following output:
Image Formatting
The image token requires a single parameter, the URL value, see below:
<<image [imageUrl]>>
Additionally, the following switches can be added to control how the image is formatted once inserted into the text box within the spreadsheet:
The -keepRatio preserves the size of the textbox and stretches the image within bounds of the textbox preserving the ratio of the image.
<<image [imageUrl] -keepRatio>>
The -fitHeight preserves the width of the textbox but changes its height according to the ratio of the image.
<<image [imageUrl] -fitHeight>>
The -fitWidth preserves the height of the textbox but changes its width according to the ratio of the image.
<<image [imageUrl] -fitWidth>>
The -fitSize changes the size of the textbox according to the size of the image.
<<image [imageUrl] -fitSize>>
The -fitSizeLim changes the size of the textbox according to the size of the image without increasing the size of the textbox.
<<image [imageUrl] -fitSizeLim>>
