Utility - RSA Create Key Pair



The 'Utility - RSA Create Key Pair' utility action for Power Automate decrypts a plain text value (string) using the RSA decryption configuration set.

Credit Count

This is a Utility action and therefore consumes only 0.05 credits per operation (except 1 credit on the free plan). For example, 100 operations will consume 5 credits on a trial and all paid plans.


The default 'Utility - RSA Create Key Pair' flow action parameters are detailed below:

  • Key Size: Set the key size
  • Key Format: Set the data format of the encrypted string
  • Add Header and Footer: Set whether the header and footer should be added

Return Parameters

Action Specific Return Values

  • Result -  The RSA Key Pair as JSON

Standard Return Values

  • OperationId - The unique ID assigned to this operation.
  • HttpStatusCode - The HTTP Status code for the response.
  • HttpStatusMessage - The HTTP Status message for the response.
  • Errors - An array of error messages should an error occur.
  • Operation Status - Indicates whether the operation has been completed, has been queued or has failed.

Working with the RSA Key Pair

The 'RSA Key Pair' is returned within the 'Result' property as a JSON string containing both the public and private key:

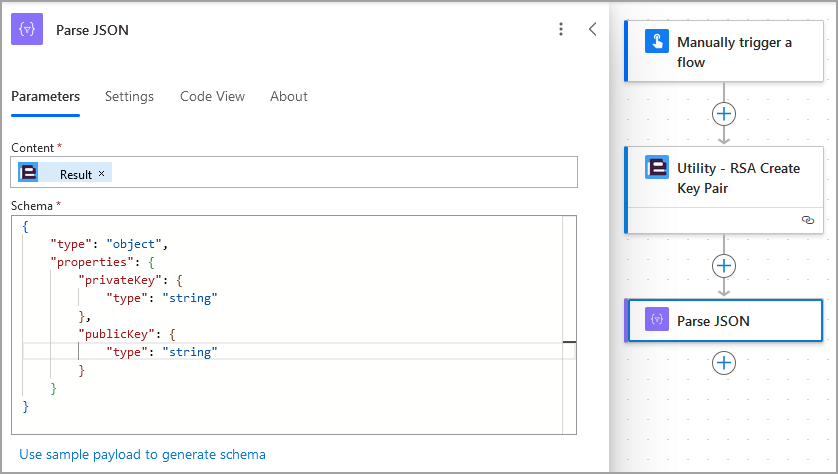

Use the native Power Automate 'Parse JSON' action to parse this value allowing access to public and private keys as dynamic properties within Power Automate:

The 'Parse JSON' schema:

   "type": "object",
   "properties": {
      "privateKey": {
      "type": "string"
       "publicKey": {
      "type": "string"

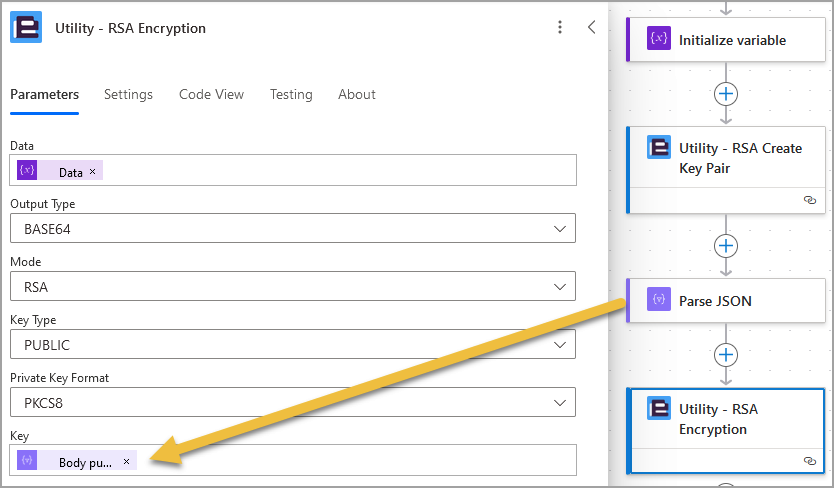

You can then use the public and private keys as dynamic properties within Power Automate:
